Anodized
Baffle height: 57 mm
Anodized : 3LW Orange
C34 Cognac
C35 Black
C0 Silver
CH43 Dark Corten
CH42 Light Corten
C31 Light Champagne
C33 Dark Champagne
CH2 Gold
V22 Light Copper
3LW Orange
V100 Dark Copper
CP3 Dark Gold
V32 Copper

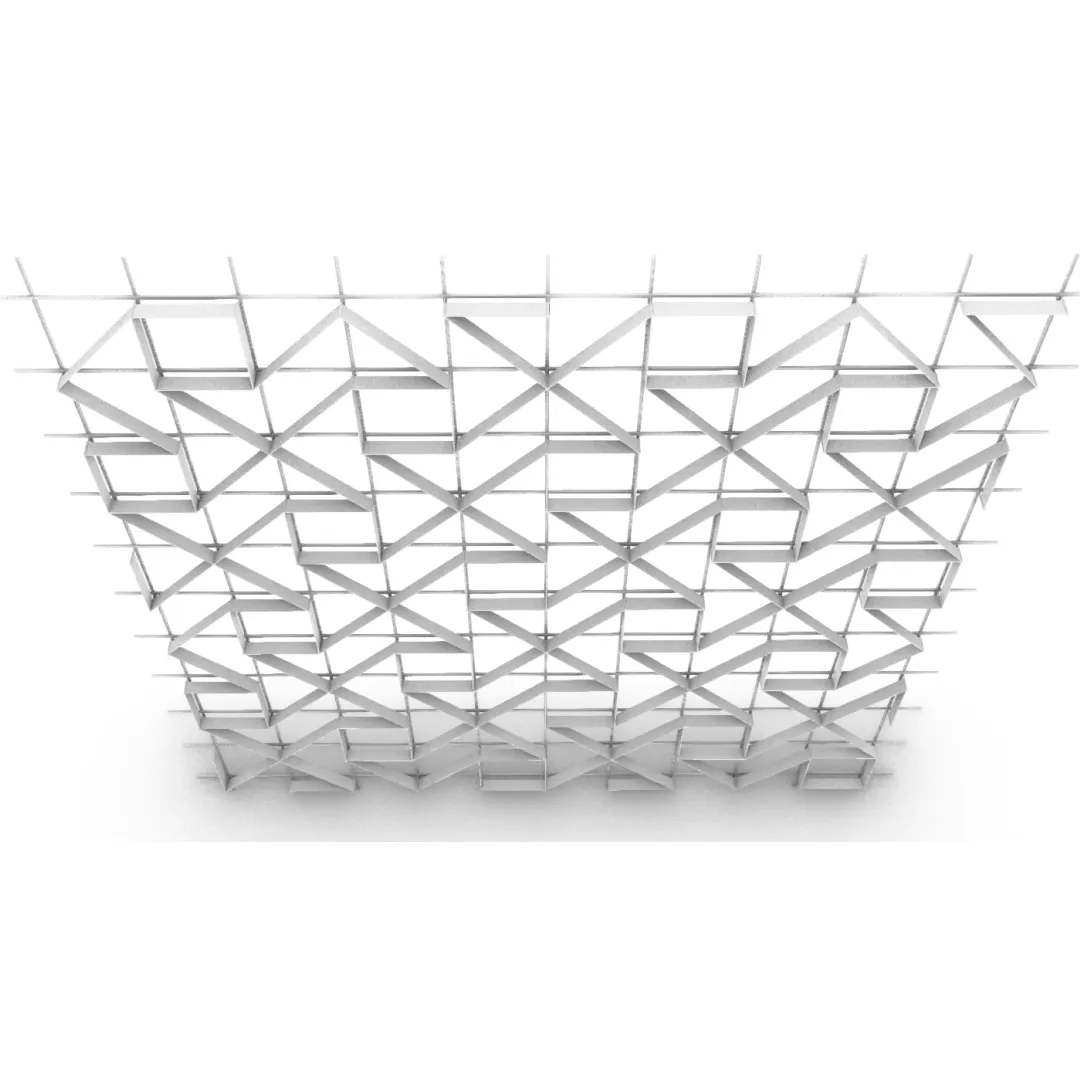

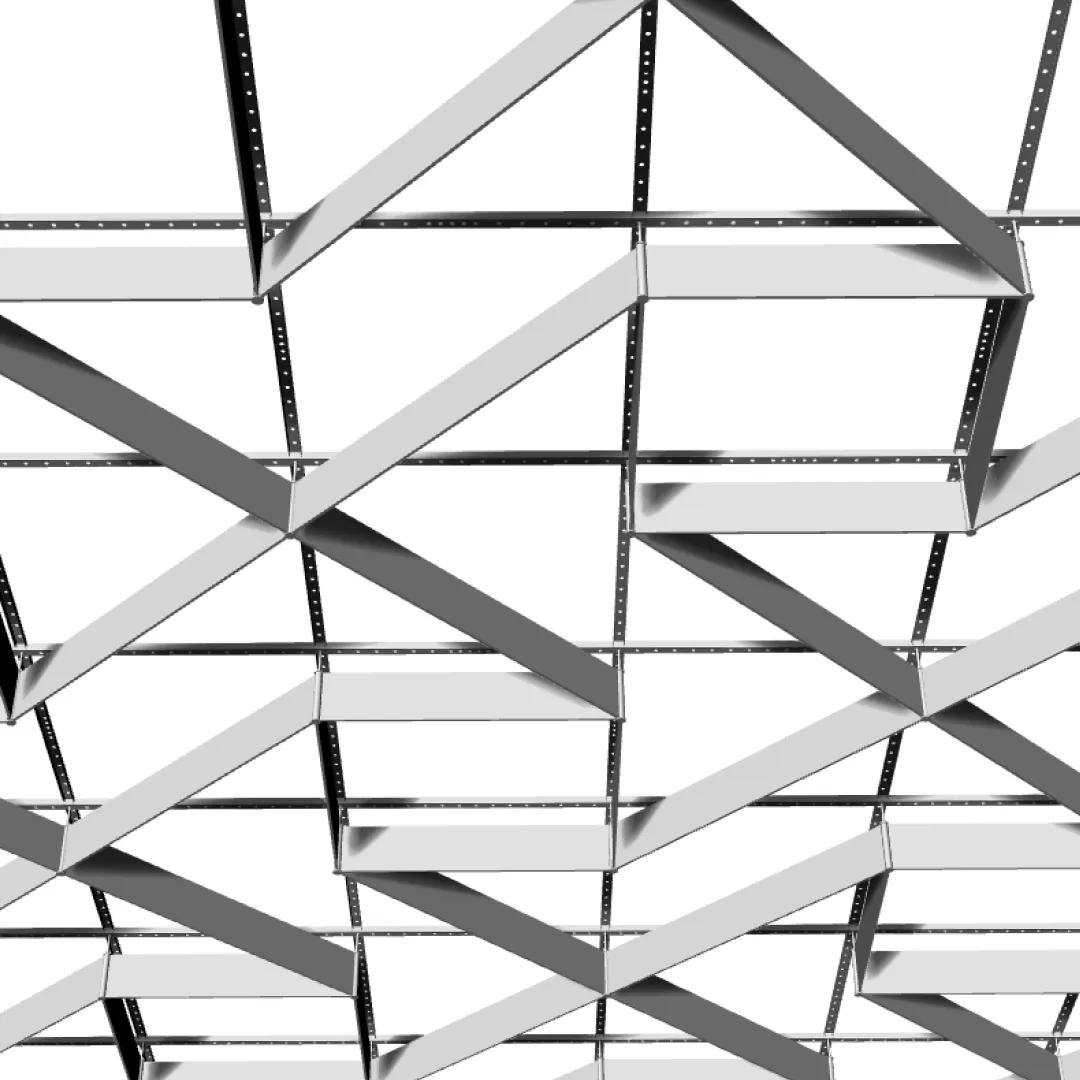

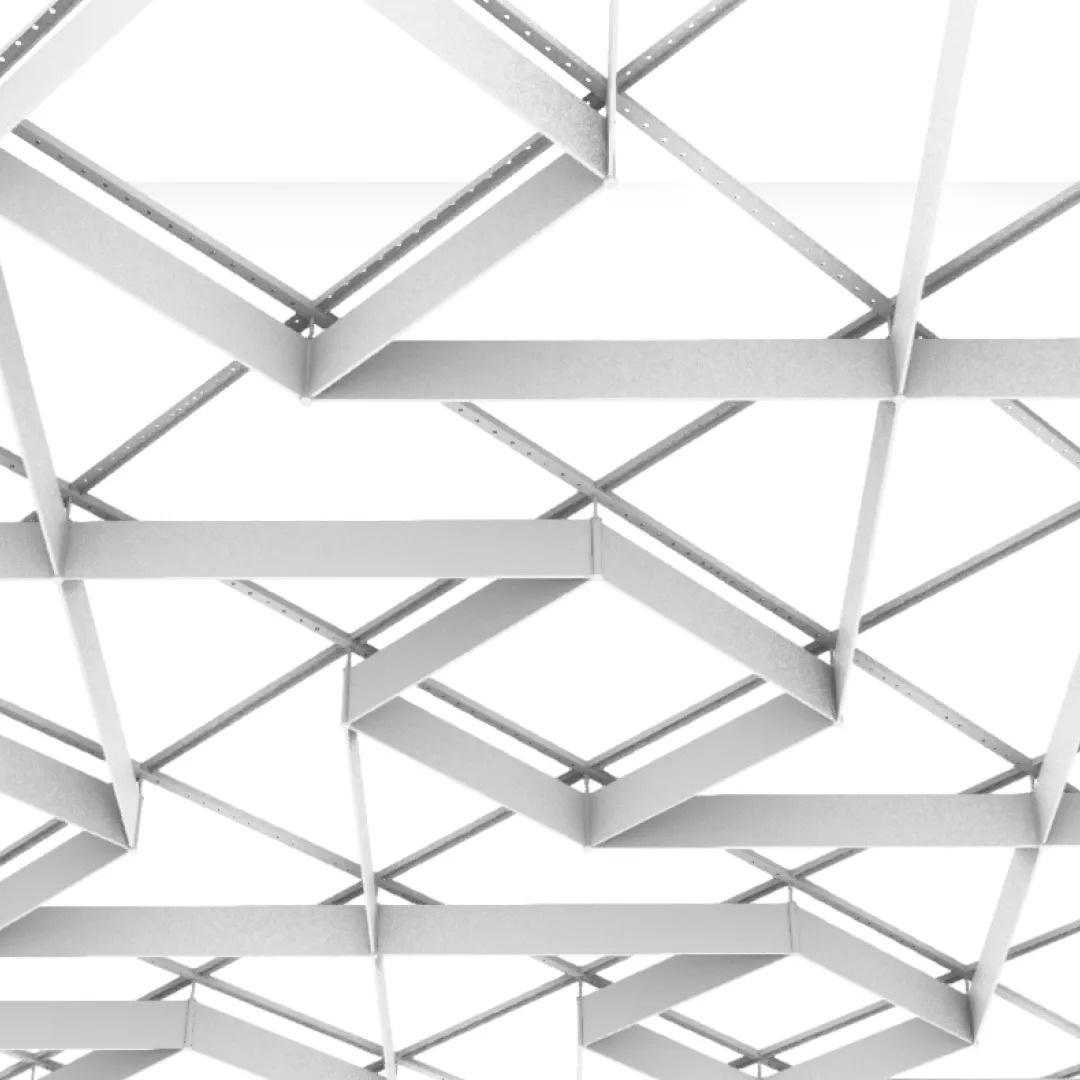

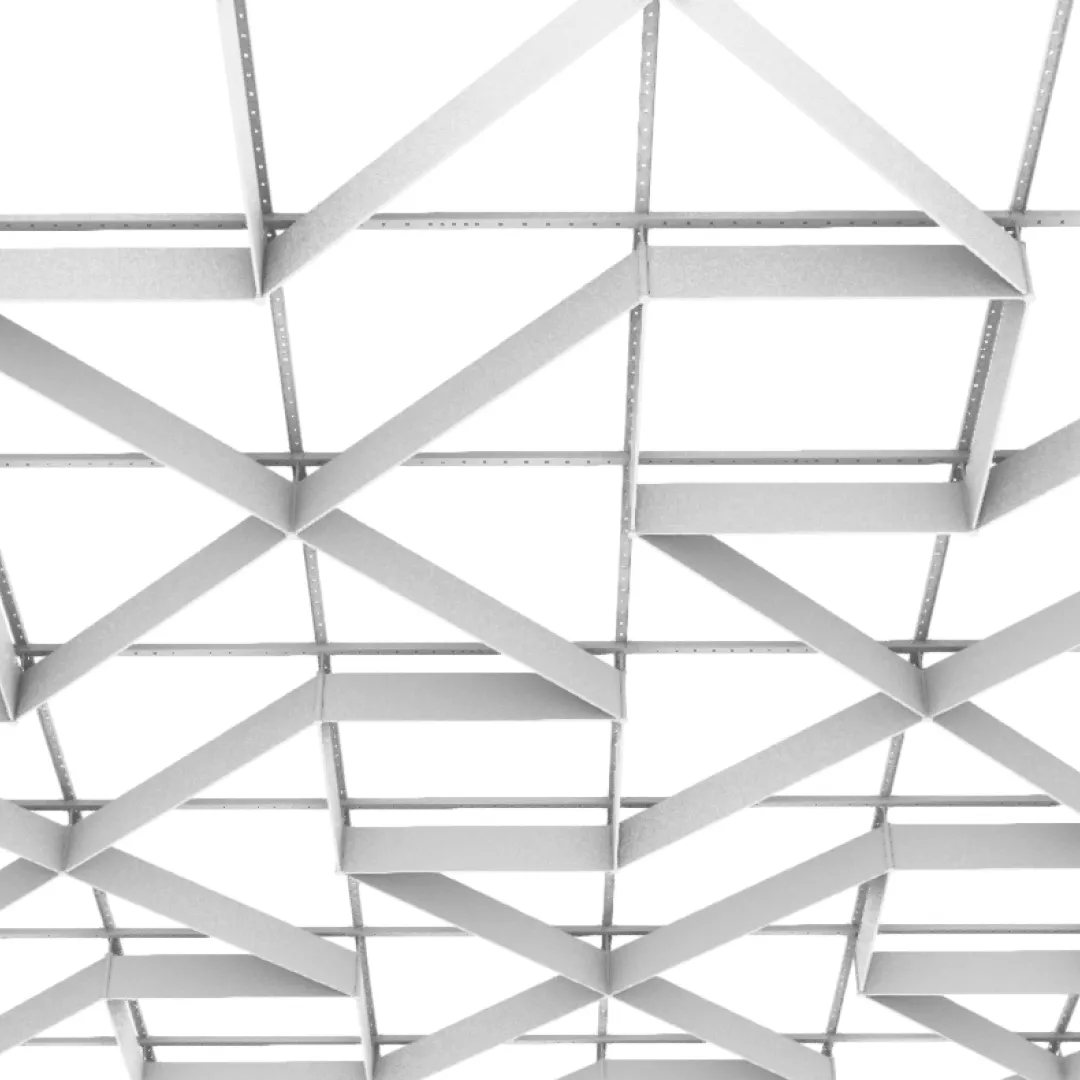

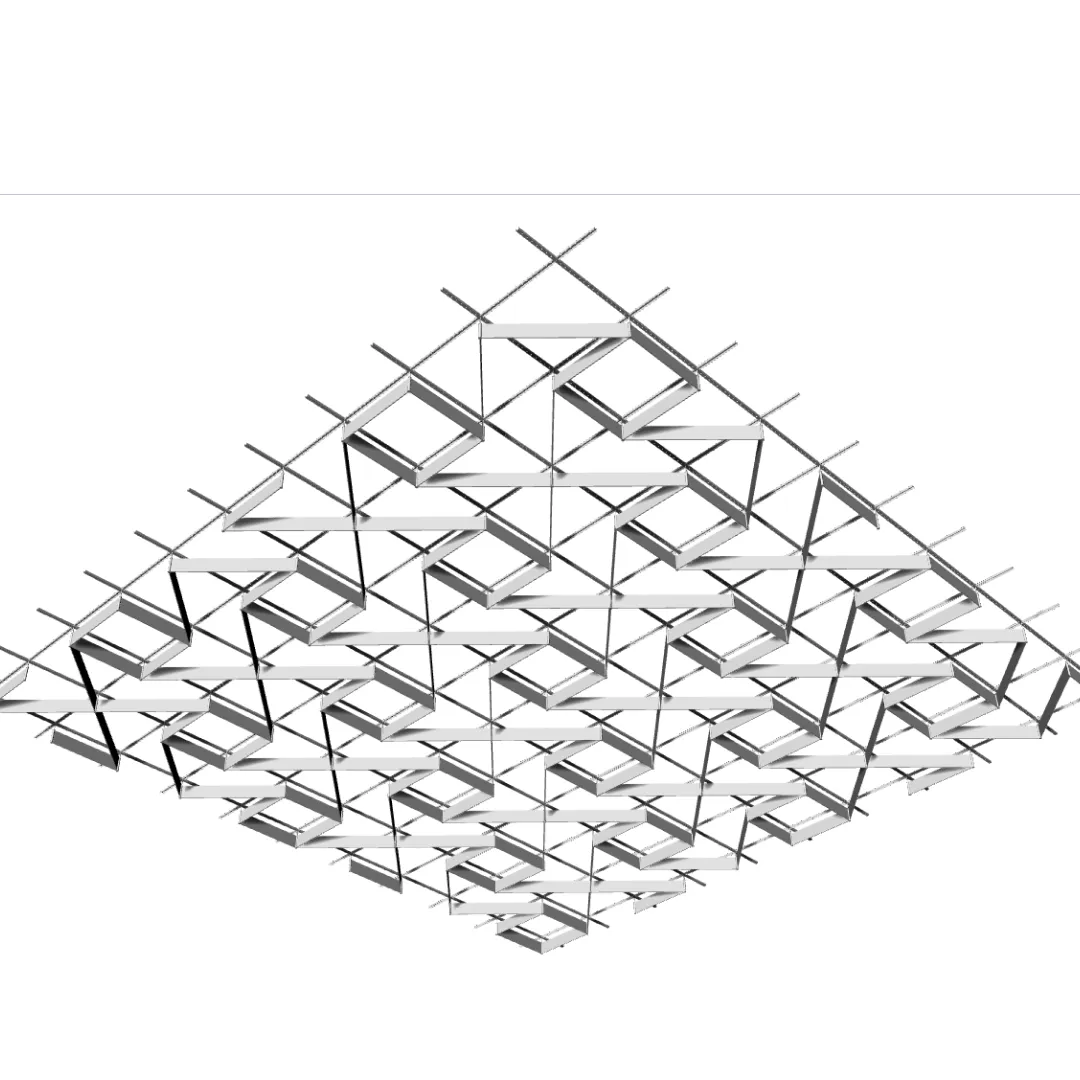

The Optimus City Mini Series Design 16 suspended ceiling system uses 57 mm aluminum baffles and an anodized aluminum finish with a refined metallic appearance. Its three-dimensional pattern provides a distinctive modular ceiling solution for commercial and public interiors.
Characteristics

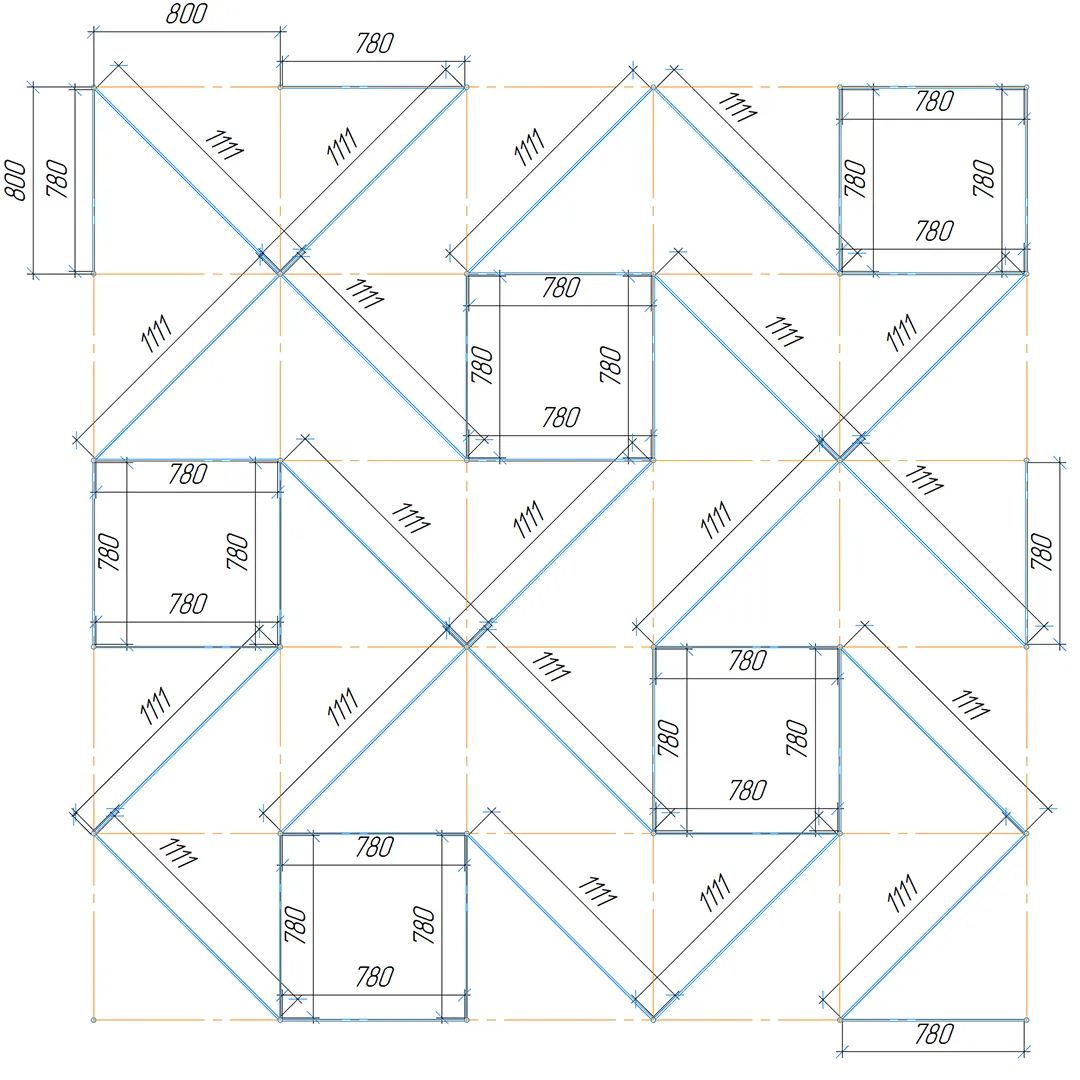

Standard Grid Cell
—
800x800 мм
Minimum System Height
—
250mm
Panel Height
—
57mm
Minimum Baffle Length
—
150 mm
Maximum Baffle Length
—
2500 mm
Material
—
Aluminum
The price is valid only for the online store and may differ from the prices in retail stores
#PROP_TITLE#
—
#PROP_VALUE#
Interchangeable Design
Change the ceiling pattern using the same set of components.
Fire Safety Certified
The ceiling system complies with fire safety requirements. Polymer-coated finishes are rated G1 V1 D2 T1 under Russian fire classification, while anodized finishes are classified as NG (Non-Combustible).
Easy Installation & Access
Designed for fast installation and easy removal of ceiling panels for maintenance and service access.
Mini Series – Design 16 Anodized Suspended Ceiling System
The Optimus City Mini Series Design 16 is a modular aluminum suspended ceiling system with 57 mm baffles and anodized aluminum. The three-dimensional layout creates a distinctive ceiling geometry while retaining convenient access to building services.
Key Benefits
- Lightweight, durable aluminum construction
- Stable modular geometry and efficient installation
- Convenient maintenance access above the ceiling
- Finish suitable for demanding architectural interiors
Applications
Recommended for Offices, Clinics and medical centers.
Configuration and cost are calculated for the area, layout and technical requirements of each project.
Technical specifications
Standard Grid Cell
800x800 мм
Minimum System Height
?
Minimum Installation Height (Substructure + Ceiling System)
250mm
Panel Height
57mm
Minimum Baffle Length
150 mm
Maximum Baffle Length
2500 mm
Material
Aluminum
Fire Performance
Russia: KM0 (NG), Federal Law No. 123 (FZ-123)
Country of Origin
Russia
Is there access to utilities after installation?
Yes, the construction allows for quick dismantling of individual elements, which simplifies the maintenance of engineering systems.
What coating options are available?
Three types of coating are available for the ceiling system:
- powder coating
- anodizing
- sublimation printing
This allows for both solid color solutions and decorative textures imitating wood, stone, or metal.
Does the ceiling system have a fire certificate?
Yes, the Optimus City ceiling holds mandatory fire certificates KM0 and KM1, allowing the system to be used in public, commercial, and administrative spaces.
Do you carry out calculations based on project documentation?
Yes, calculations can be performed based on drawings, specifications, or an architectural brief.
How is the cost of a ceiling system calculated?
The cost is calculated individually based on the room area, selected pattern, coating type, slat dimensions, and additional technical solutions.
What materials are used in your ceilings and how does this affect their performance?
We use only high-quality and environmentally friendly materials, such as galvanized steel for profiles and aluminum for structural elements. These materials ensure durability, resistance to external influences, and ease of maintenance. In addition, they are not susceptible to corrosion and have high strength characteristics, making the ceilings reliable and long-lasting under any operating conditions.
How long do ceiling systems last, and what affects their durability?
The service life of our ceiling systems depends on operating conditions, installation quality, and proper maintenance. When all care recommendations are followed, such ceilings can last more than 20 years. It is important to consider the humidity and temperature conditions in the room, as well as to properly maintain the lighting system and clean the panels, in order to extend the service life and preserve the appearance.
